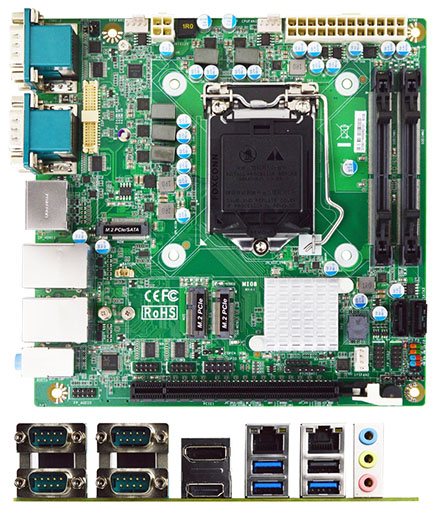

Jetway MI08-00 (LGA1200 Comet Lake-S, 4x RS232, 2x LAN)

Jetway MI08-00 (LGA1200 Comet Lake-S, 4x RS232, 2x LAN)
  • Comet Lake-S Socket !
  • 4x RS232 !
  • 2x LAN !
  • miniITX Format !


The JETWAY MI08-00/MI08-02 is Mini-ITX form factor board adopts the Intel® 10th generation Core i7/i5/i3, Pentium and Celeron Processor. The board supports two SO-DIMM DDR4 2666MHz memory, up to 64GB. Featuring the integrated Intel® i219V GbE & i211AT GbE controller, the MI08-00/MI08-02 offers two Ethernet devices for network transmission. Two SATAIII (6Gb/s) interface and one M.2 M-key 2242/2280 (SATA/PCIex2) support NVMe offer storage devices. One M.2 E-key 2230 (PCIex1/USB2.0), one M.2 B-key 3042/3052 (USB3.0/PCIe x1) W/SIM card slot, three USB3.2 Gen.1 ports, five USB2.0 ports and six COM ports provide versatile expansion. The PCIex16 slot can support Jetway riser card for diff
[more]

Share

279.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart


The JETWAY MI08-00/MI08-02 is Mini-ITX form factor board adopts the Intel® 10th generation Core i7/i5/i3, Pentium and Celeron Processor. The board supports two SO-DIMM DDR4 2666MHz memory, up to 64GB. Featuring the integrated Intel® i219V GbE & i211AT GbE controller, the MI08-00/MI08-02 offers two Ethernet devices for network transmission. Two SATAIII (6Gb/s) interface and one M.2 M-key 2242/2280 (SATA/PCIex2) support NVMe offer storage devices. One M.2 E-key 2230 (PCIex1/USB2.0), one M.2 B-key 3042/3052 (USB3.0/PCIe x1) W/SIM card slot, three USB3.2 Gen.1 ports, five USB2.0 ports and six COM ports provide versatile expansion. The PCIex16 slot can support Jetway riser card for different expansion. The MI08-00/MI08-02 offers one HDMI1.4 port, one DP1.2 port and one eDP port which can support 2 independent displays. Because of the above features, MI08-00/MI08-02 is suitable for Edge Computing, Digital Signage, Industrial PCs, Factory Automation, Public Sector, Digital Security and Surveillance applications.

  • Intel® 10th LGA1200 Socket Comet Lake-S Processor (Max. 65W TDP)
  • 2* DDR4 2666/2400MHz SO-DIMM up to 64GB
  • 1* Intel i211AT GbE, 1* Intel i219V GbE
  • 1* HDMI, 1* DP, 1* eDP
  • 6* COM (COM1 support RS232/422/485), 3* USB3.2 Gen.1, 5* USB2.0
  • 1* PCIe x16 slot, 1* M.2 M-key 2242/2280 (SATA/PCIe x2) support NVMe, 1* M.2 E-key 2230 (PCIe x1/USB2.0), 1* M.2 B-key 3042/3052 (USB3.0/PCIe x1) W/SIM card slot
  • 2* SATAIII (6Gb/s)
  • Support onboard TPM 2.0 (MI08-02 only)



Model – MI08-00 (Default)
– MI08-02 (W/TPM2.0)
Form Factor – Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)
Processor System – Intel® 10th LGA 1200 Socket Core i7/i5/i3/Pentium/Celeron Comet Lake-S Processor (Max. 65W TDP)
– Intel H410 Express chipset
– AMI 128Mb Flash ROM BIOS
Expansion Slot – 1* E-key 2230 (PCIex1/USB2.0)
– 1* B-key 3042/3052 (USB3.0/PCIe x1) W/SIM card slot
– 1* PCIex16 slot
Memory – 2* Dual CH non-ECC DDR4 2666/2400MHz SDRAM SO-DIMM up to 64GB
Graphics – Intel® HD Graphics, shared memory
– 1* eDP (Max Resolution: 4096×2304@60Hz)
– 1* HDMI 1.4 (Max Resolution: 4096×2160@30Hz)
– 1* DP (Max Resolution: 4096×2304@60Hz)
– Support Dual Displays
Ethernet – 1 * Intel i219V GbE
– 1 * Intel i211AT GbE
Audio – 6 channel HD audio: Realtek ALC888S-VD2
Storage – 2* SATAIII
– 1* M-key 2242/2280 (SATA/PCIex2) support NVMe
Rear I/O – 1* HDMI
– 1* DP
– 2* RJ45 Ethernet
– 3* USB 3.2 (Gen. 1)
– 1* USB 2.0
– 4* COM (COM1 support RS232/422/485)
– Line-in, Line-out, MIC
– 1* DC-in jack
Internal I/O – 4* USB 2.0
– 1* eDP
– 2* SATAIII
– 2* COM
– 1* M.2 M-key 2242/2280 (SATA/PCIex2) support NVMe
– 1* M.2 E-key 2230 (PCIex1/USB2.0)
– 1* M.2 B-key 3042/3052 (USB3.0/PCIe x1)
– 1* PS/2, 1* GPIO (8 bit)
– 1* Chassis intrusion
– 1* Audio Header, 1* AT mode
– Support onboard TPM2.0 (MI08-02)
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Power ATX PWR (4+24 pin), AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, LVD, RoHS, REACH
Temperature – Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10, Linux
