DFI DL631-C226CRM ATX Mainboard (LGA1150)

DFI DL631-C226CRM ATX Mainboard (LGA1150)
  • Rev AF0 DFI-ITOX
  • LGA1150
  • Intel C226

  • Intel® Xeon®/Core™ 4. Gen., Intel® C226 Chipsatz
  • Dual channel DDR3 1600MHz DIMM up to 32GB
  • 1 HDMI, 1 DVI-I
  • Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4 (1 x4 and 1 x1 signal), 3 PCI, 6 SATA 3.0
  • Rich I/O: 2 Intel GbE, 10 USB, 6 COM


98.00 EUR
incl. 19% VAT, plus shipping
In Stock (3 pcs)

Add to cart
Processor 4th Generation Intel® Core™ processors, LGA 1150 socket
Intel® Xeon® E3-1275 v3 Processor, 8M Cache, 3.9 GHz, 95W
Intel® Xeon® E3-1268L v3 Processor, 8M Cache, 3.3 GHz, 45W
Intel® Xeon® E3-1225 v3 Processor, 8M Cache, 3.6 GHz, 95W
Intel® Core™ i7-4770S Processor, 8M Cache, 3.9 GHz, 65W
Intel® Core™ i7-4770TE Processor, 8M Cache, 3.3 GHz, 45W
Intel® Core™ i5-4590S Processor, 6M Cache, 3.7 GHz, 65W
Intel® Core™ i5-4590T Processor, 6M Cache, 3.0 GHz), 35W
Intel® Core™ i5-4570S Processor, 6M Cache, 3.6 GHz, 65W
Intel® Core™ i5-4570TE Processor, 4M Cache, 3.3 GHz, 35W
Intel® Core™ i3-4360 Processor, 4M Cache, 3.7 GHz, 54W
Intel® Core™ i3-4350T Processor, 4M Cache, 3.1 GHz, 35W
Intel® Core™ i3-4340TE Processor, 4M Cache, 2.6 GHz, 35W
Intel® Core™ i3-4330 Processor, 4M Cache, 3.5 GHz, 54W
Intel® Core™ i3-4330TE Processor, 4M Cache, 2.4 GHz, 35W
Intel® Pentium® G3420 Processor, 3M Cache, 3.2 GHz, 53W
Intel® Pentium® G3320TE Processor, 3M Cache, 2.3 GHz, 35W
Intel® Celeron® G1820 Processor, 2M Cache, 2.7 GHz, 53W
Intel® Celeron® G1820TE Processor, 2M Cache, 2.2 GHz, 35W
Chipset Intel® C226 Chipset
Memory Four 240-pin ECC DIMM up to 32GB Dual Channel DDR3 1333/1600MHz
Graphics Intel® HD Graphics (Open GL 4.0, DirectX 11.1)
Displaysupport: 1x HDMI (resolution up to 4096x2304 @ 24Hz or 2560x1600 @ 60Hz)
1x DVI-I (resolution up to 1920x1200 @ 60Hz)
Expansion 2 x PCIe x16 (1 x16 or 2 x8 signal)
2 x PCIe x4 (1 x4 and 1 x1 signal)
3 x PCI
6 x SATA 3.0
Audio Realtek ALC886
Ethernet 1 x Intel® I210 PCIe (10/100/1000Mbps)
1 x Intel® I217LM with iAMT9.0 (10/100/1000Mbps)
Rear I/O 2 x GbE (RJ-45)
2 x RS-232/422/485 (RS-232 w/ power) (DB-9)
4 x USB 3.0
2 x USB 2.0
1x PS/2
1x DVI-I
1x Line Out
1x Mic In
1x Line In

Internal I/O 4 x RS232 (2.0mm pitch)
4x USB 2.0
1 x Audio (Line-out/Mic-in)
1 x S/PDIF
6x SATA 3.0 RAIS 0/1/5/10
1x 8-bit DIO
1x LPC
Watchdog Timer System Reset, Programmable via Software from 1 to 255 Seconds
Power ATX - 8pin ATX 12V power / 24-pin ATX Power
Consuption: 75.07W with E3-1275 v3 at 3.50GHz and 4x 2GB DDR3 DIMM
OS Support: Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8 Enterprise x86 (32-bit)
Windows 8 Enterprise x64 (64-bit)
Windows 10 IoT Enterprise (64-bit)
Enviroment Temperatur:
Operating: 0 to 60°C
Storage: -20 to 85°C
Operating: 5 to 90% RH
Storage: 5 to 90% RH
Dimensions: ATX form factor 305mm (12") x 244mm (9.6")

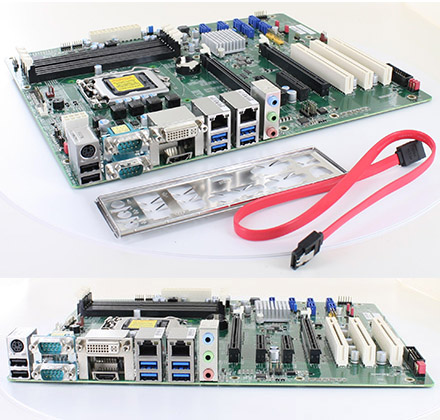

Packing List 1 DL3631 motherboard
1 Serial ATA data cable (Length: 500mm, w/lock)
1 I/O shield
Data sheet Download (PDF)
Data sheet Print view
