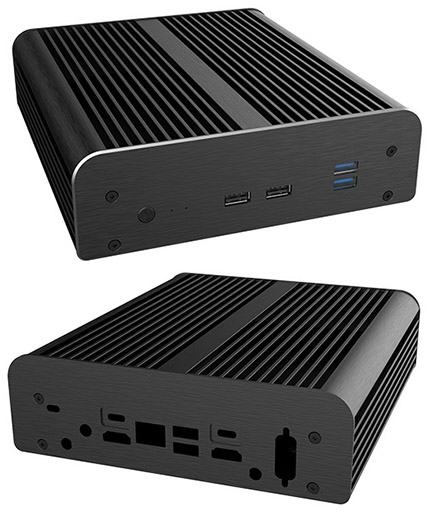

This enclosure enables a fully fanless working PC with Intel NUC11TNKxxx / NUC12TNHxxx NUC mainboard. Perfect for HTPC, Digital Signage or Server applications.
For a full PC you need in addition:
- Intel NUC mainboard (11th Gen. or 12th Gen. NUC)
- M.2 SSD o. 2.5" HDD/SSD
See Technical Details
|Motherboard Types||UCFF 4" X 4"|
|Motherboard Support||NUC12WSHv7 / NUC12WSKv7 / NUC12WSHv70Z / NUC12WSKv70Z / NUC12WSHi7 / NUC12WSKi7 / NUC12WSHi70Z / NUC12WSKi70Z / NUC12WSBv7 / NUC12WSBi7
NUC12WSHv5 / NUC12WSKv5 / NUC12WSHv50Z / NUC12WSKv50Z / NUC12WSHi5 / NUC12WSKi5 / NUC12WSHi50Z / NUC12WSKi50Z / NUC12WSBv5 / NUC12WSBi5
NUC12WSHi3 / NUC12WSKi3 / NUC12WSHi30Z / NUC12WSKi30Z / NUC12WSBi3
Intel® NUC 11 Pro Mini Board/Kit
NUC11TNKi3 / NUC11TNHi3 / NUC11TNBi3
NUC11TNKi5 / NUC11TNHi5 / NUC11TNBi5 / NUC11TNKv5 / NUC11TNHv5 / NUC11TNBv5
NUC11TNKi7 / NUC11TNHi7 / NUC11TNBi7 / NUC11TNKv7 / NUC11TNHv7 / NUC11TNBv7
|Dimensions||176.6 x 200 x 53.6mm (W x D x H)|
|Drive Bays||2.5" SSD/HDD (up to 9.5mm high)|
|Front I/O Opening||Power button, power and HDD led, USB 3.2 port x2, USB 2.0 port x2|
|Rear I/O||DC-In port, HDMI port x2, USB 3.2 Type-A x1,
USB 2.0 Type-A port x1, USB 4 (Type-C) x2, LAN port x1, Serial port x1
|Antenna Fitting Holes||2|
