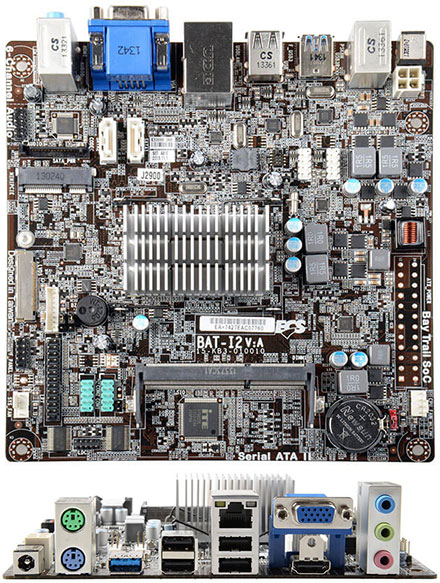

ECS BAT-I2(V2.0) Mini-ITX (Intel Bay Trail J1900, HDMI/VGA/LVDS, 19VDC) [FANLESS]

PRODUCT IS CURRENTLY NOT AVAILABLE !
ECS BAT-I2(V2.0) Mini-ITX (Intel Bay Trail J1900, HDMI/VGA/LVDS, 19VDC) [<b>FANLESS</b>]

  • Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
  • ECS Durathon Technology ensure the stability, reliability and performance of system.
  • Dual Display design for multiple output support
  • Integrated Printer (LPT) port / header to expand functionality
  • Microsoft Windows 8 Certified
  • Intel ® VRD 12 Ready
  • Supports DirectX® 11 to enhance graphical performance
  • Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function
  • Free Bundle: CyberLink Media Suite


Share

RAM :
Supports Intel® CNVi
CPU Onboard Intel® Bay Trail processors
On-Board CPU Intel ® Bay Trail J1900 processor
VRD 12.0
Solid Capacitor for CPU side
Supports Intel® Hyper-Threading Technology
GRAPHICS Supports DirectX® 11
Supports Full HD 1080P Blu-ray / HD-DVD Playback
MEMORY Single-channel DDR3 Memory architecture
1 X DDR3 SO-DIMM socket
Support up to 8 GB
EXPANSION SLOT 1 X Mini PCI Express X1 slot(s) for Wi-Fi /Blutooth modules
Storage 2 X Serial ATAIII 3Gb/s
Audio 6-Channel HD audio CODEC Realtek ALC662
Realtek ALC662 6-channel High Definition audio CODEC
Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs
Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution
Emulation of 26 sound environments to enhance gaming experience
Voice Cancellation and Key Shifting in Karaoke mode
Compatible with Direct Sound 3D™, A3D™, I3DL2
LAN Realtek RTL8111G Gigabit Fast Ethernet Controller
USB 1 X USB3.1 Gen1 port(s) up to 5Gb/s
8 X USB2.0 port(s) Up to 480 Mb/s ( Back Panel 4 port(s), Onboard 4 port(s))
REAR PANEL I/O 1 X PS/2 Keyboard & PS/2 mouse connectors
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X HDMI port(s)
1 X D-Sub (VGA) port(s)
1 X USB3.1 Gen1 port(s)
4 X USB2.0 port(s)
1x DC-In connector
CONNECTORS & HEADERS 1 X 4-pin CPU_FAN connector with smart fan
1 X 4-pin SYS_FAN connector with smart fan
1 X Front Panel MIC/Speaker out header
1 X Front Panel switch/LED header
1 X USB 2.0 header (Support additional 2 USB ports)
2 X SATA II 3Gb/s connector(s)
1 X CLR_CMOS header
2 X Serial port header (COM)
1 X Parallel port header (LPT)
1 X LVDS connector (optional)
SYSTEM BIOS AMI BIOS with 8 MB SPI Flash ROM
Supports ACPI 5.0 & DMI
Dual Display
Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
Multi-Language BIOS
Audio, LAN, can be disabled in BIOS
Dual-Monitor function
FORM FACTOR Mini ITX Form Factor 170*170
OS Support Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 64-bit
Windows 10 32-bit
Certifications CE/FCC Certification
ErP/EuP Certification
WHQL Certification
WHCK Certification
Data sheet Download (PDF)
Data sheet Print view
ECS Elitegroup Catalog Download (PDF)
