850W DC ATX Netzteil (18-36VDC) [24V]

850W DC ATX Netzteil (18-36VDC) [24V]
  • STC-24850 fan-controller

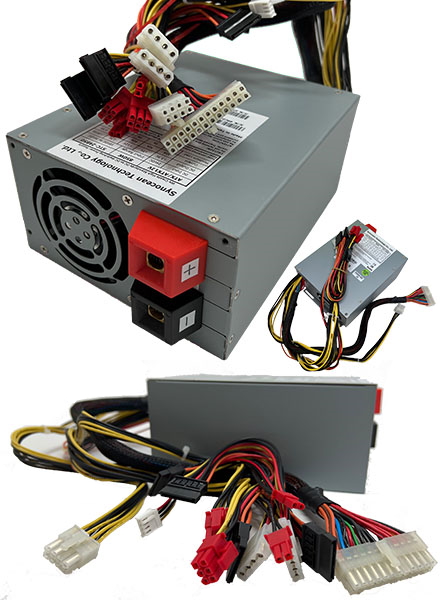

850W DC ATX P4 Power Supply (18-36VDC)

Now you can power every PC in your truck. 850W power and Pentium-4 connector are giving you all possibilities !
The ATX connector has 24 pins. Along with the power supply there is a 24pol to 20pol ATX adapter included.

Note : Minimum power of 60W must be drawn at system startup time !


598.00 EUR
incl. 19% VAT, plus shipping
In Stock (22 pcs)

Add to cart
Dimensions 150mm[W] × 184mm[L] × 86mm[H] Standard ATX PS/2 size
Weight 3.5 kgs
Input Voltage Range 18 - 36VDC
Output Power maximum 850W
Output Power maximum (rails) +3.3V : 30A
+5.0V : 30A
+12.0V : 60A
Remote sensing +5V and +3.3V
Over Power Protection Load over 130%±10% of max. output power : shutdown
Over Voltage Protection +5V, +12V & +3.3V Auto-recovery
Short Circuit Protection Main outputs shutdown and latch off
Over Temperature Protection OTP Level is set at 110°C
Operating Temperature -20°C ~ +70°C
Storage Temperature -40°C~+80°C
Cooling Build-in One 80x80x25mm Ball Bearing Fan with max. air flow 42CFM
Data sheet Download (PDF)
Data sheet Print view
Cables-Connectors Download (PDF)
