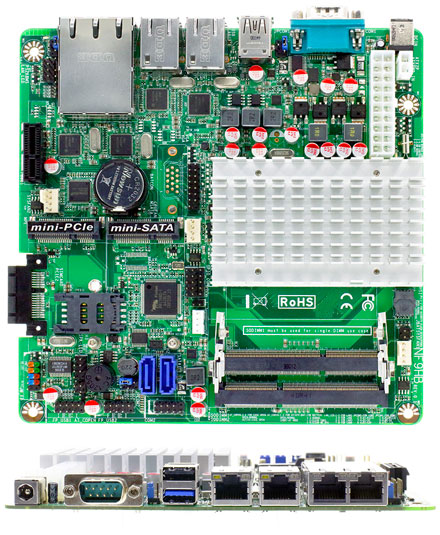

Jetway NF9HG-2930 (Intel Bay Trail-M)

Jetway NF9HG-2930 (Intel Bay Trail-M)

  • Intel® Baytrail-M/D/I Processor
  • Integrated Intel® Gen7 Intel® Graphics DX 11*, OGL3.0
  • Supports Single Channel DDR3L 1333 MHz, 2 x SO-DIMM, up to 8GB system memory
  • Gigabit LAN : 4 x Intel LAN
  • TPM by option
  • 3G module with SIM card slot
  • 1 x internal VGA port
  • 1 x USB 3.0, 1 x USB 2.0
  • 1 x mini-PCIe, 1 x mSATA, 2 x PCIex1
  • 3G module with SIM card slot
  • Support CPU Over-Temperature protection
  • Support CPU Over-Current/Under Voltage protection
  • Support DRAM Over-Current/Under Voltage protection
  • Support CPU Smart Fan


Share

298.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

5 von 5 Sternen
2 ratings
Add to cart
Form Factor
Dimensions - Mini-ITX (6.7-in x 6.7-in, 170 x 170mm)
Processor System
CPU - Intel® Baytrail-M Celeron N2930 Processor
- Supports Hyper-Threading Technology
Core Number - (By CPU)
Max Speed - (By CPU)
L2 Cache - (By CPU)
Chipset - N/A
BIOS - AMI 64Mb Flash ROM
Expansion Slot
Mini-PCIe - 1 (full size)
mSATA - 1 share with SATA2 (full size)
PCIe - 2 (x1)
SIM - 1
Memory
Technology - Single Channel DDR3L 1333 MHz SDRAM (By CPU)
Max. - 8GB
Socket - 2 x SO-DIMM
Graphics
Controller - Intel® Gen7 Intel® Graphics DX 11*, OGL3.0
VRAM - Shared Memory
VGA - 1 ( Internal )
LVDS - 0
HDMI - 0
MultiDisplay - No
Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN: Intel I211AT
Connector - 4 x RJ 45
SATA
Max Data Transfer Rate - 2 x SATAII (3.0Gb/s) (1 share with mSATA)
Rear I/O
VGA - 0
HDMI - 0
Ethernet - 4
USB - 2 (1 x USB 3.0, 1 x USB 2.0)
Audio - 0
Serial - 1 x RS-232
PS2 - 0
DC-input - 1 x 12V DC-in JACK
Internal Connector
USB - 4 (4 x USB 2.0)
LVDS / inverter - 0
Serial - 2 (2 x RS-232 with 5V/12V selectable header)
SATA - 2
mPCIe - 1
mSATA - 1
Chassis intrusion - 1 (via 12pin header)
PS2 - 1
Audio Header - 0
Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2…255sec/min
Power Requirements
Input PWR - 12V DC-In (2-pin PWR Con)
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications - CE, FCC, RoHS, REACH
Environment
Temperature - Operating: 0℃– 60℃
- Storage: -20℃– 85℃
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 2 ratings
5 von 5 Sternen from mattias.nissler@gmail.com am 13.03.2017 |

Prima board, ideal als Router dank 4 GbE ports und trotzdem kompakten Abmessungen, passt mit selbstentworfenem Kunstoffgehäuse perfekt in ein kleines 10 Zoll rack.

5 von 5 Sternen from 5t1ma47JA am 27.01.2016

Weltklasse Board, ich setze es für eine Firewall (pfsense) ein. Es ist sehr sparsam, schnell und dazu noch 4x GBit Ethernet, ich würde es mir auf jeden Fall wieder kaufen.
