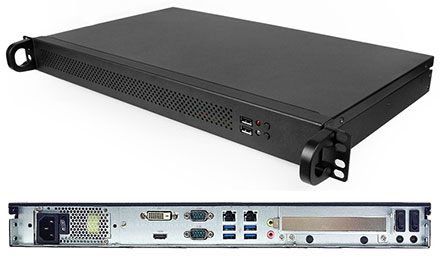

Jetway JBC150F596-3160-B (Intel Braswell)

Jetway JBC150F596-3160-B (Intel Braswell)

  • 1 * SO-DIMM DDR3L 1600MHz up to 8GB
  • 1 * DVI-I , 1 * HDMI
  • Form Factor : 430 x 250 x 44 mm
  • AC 90~240V_200W FLEX Power


Share

589.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
Product Dimension – 430 (W) * 250 (D) * 44 (H) mm
Product Model – JBC150F596-3160-B
– JBC150F596-3160-BS (Rear side add Giga LAN * 1)
MB Model – NF596-3160 (Mini-ITX)
– CPU : Intel® Braswell – N3160 Processor
– Memory : DDR3L-1600MHz / SO-DIMM *1 / Max : 8GB
Case Colors – Black
Front I/O Port
– Power SW * 1 , Reset SW * 1
– Power LED * 1 , HDD R/W LED * 1
– USB 2.0 Port * 2
Rear I/O Port
– Power SW * 1 , Reset SW * 1
– Power LED * 1 , HDD R/W LED * 1
– Giga LAN Port * 2 (Realtek RTL8111G)
– DVI-D Port * 1, HDMI * 1
– COM Port * 2
– USB 3.0 Port * 4
– MIC * 1, Line out * 1
– AC Input * 12
PSU – 1U-200W / Support PFC / 150 (L) *81.5 (W) *40.5 (H) mm (FLEX)
FAN – 4020 FAN * 3 / 7000 rpm / DC-12V-0.1A / 8 CFM
Expansion – PCI-E x 1 Solt * 1
– SIM CARD * 1
– Mini-PCIE Slot * 1
– M-SATA * 1
Storage – 3.5” HDD * 1 or 2.5” HDD * 1 (Support SATA 3 )
Accessory – Power cord * 1
– Quick Installation Guide * 1
– User Manual * 1 , CD * 1
– Screw Package * 1
– CD * 1
Packing – Net Weight：3.5KG
– Gross Weight：4.5KG
– Color Box Dimension：530 (W) x 352 (D) x 142 (H) mm
Safety – CE , FCC , RoHS , REACH
Applications – Industrial Control System
– Networking Server System
– Workstation
Warranty –2 Year limited warranty
