Intel NUC5i3RYH (Intel Core i3-5010U CPU 2x 2.1Ghz, 1x HDMI, 1x dP, 1x M.2, 2.5" HDD/SSD support)

PRODUCT IS CURRENTLY NOT AVAILABLE !

Because of its size (115 x 111 x 48.7mm !) the system is perfect for these applications :
- POS
- Digital Signage
- Kiosk

Or use as attractive office-computer or server.

For a full PC you need in addition :
- SO-DDR-III RAM (Low Voltage, 1.35V)
- mSATA SSD

Features :
- CPU: Intel Core i3-5010U, 2x 2.10GHz, 3MB Cache, 15W TDP
- RAM: 2x DDR3L SO-DIMM
- 1x M.2 SATA + 1x 2.5" SATA slot
- Intel Dual Band Wireless-AC 7265
- Intel HD Graphics 5500(IGP)
- 1x Mini HDMI 1.4a, 1x Mini DisplayPort 1.2
- 4x USB 3.0, 1x Gb LAN
- Power supply: 65W, external
- D
[more]

Share

Because of its size (115 x 111 x 48.7mm !) the system is perfect for these applications :
- POS
- Digital Signage
- Kiosk

Or use as attractive office-computer or server.

For a full PC you need in addition :
- SO-DDR-III RAM (Low Voltage, 1.35V)
- mSATA SSD

Features :
- CPU: Intel Core i3-5010U, 2x 2.10GHz, 3MB Cache, 15W TDP
- RAM: 2x DDR3L SO-DIMM
- 1x M.2 SATA + 1x 2.5" SATA slot
- Intel Dual Band Wireless-AC 7265
- Intel HD Graphics 5500(IGP)
- 1x Mini HDMI 1.4a, 1x Mini DisplayPort 1.2
- 4x USB 3.0, 1x Gb LAN
- Power supply: 65W, external
- Dimensions (WxHxD): 115x111x48.7mm

The 4-inch square Intel® NUC NUC5i3RYH takes the powerful capabilities of a desktop system and packages it into a computer that fits in the palm of your hand. This fully scalable system comes with the latest 5th generation Intel® Core™ i3 processor and integrated Intel® HD Graphics with 4K display support. Whether you want a digital jukebox, home hub, or light gaming PC, the Intel NUC NUC5i3RYH gives you the power to play, create, entertain, and inspire. The system includes consumer infrared sensor so you can use a remote control for your NUC right from your couch, 7.1 surround sound, Mini HDMI* video interface, and room for a 2.5" HDD or an M.2 SSD so you can store full-length movies or quickly serve up music files. With Intel® WiDi1 you can connect your monitor without any additional cables and Bluetooth* lets you place wireless speakers where you want—all the features you want in a space-saving, clutter-free design. A replaceable lid gives you plenty of options to create the Intel NUC you want—with amazing style and features. There’s also a high-speed USB 3.0 charging port that lets you easily charge your tablet or smartphone quickly. And for peace of mind you’ll get embedded security that helps keep threats out, user identities and credentials safe, and your data protected.

Dimensions / Weight 115 x 111 x 48.7 mm
CPU Intel Core i3-5010U (Integrated)
2.1Ghz, Dual Core, 3MB Smart Cache
Supports Intel 64 architecture
RAM 2x SO-DDR-3L RAM (up to 16GB 1333/1600) [1.35V !]
Audio Intel® High Definitio Audio (Intel HD Audio) via Mini HDMI 1.4a and Mini DisplayPort 1.2 outputs supporting 8 channel (7.1) digital audio
Graphics Intel HD Graphics 5500
One Mini DisplayPort* 1.2 supporting ultra-high definition
4K displays and multiple monitor functionality
One Mini HDMI* 1.4a port
Expansion - 2x Internal USB2.0
OS Support Windows 7, Windows 8
Front I/O 2 x USB3.0
1x Microphone/Headphone jack
1x Infrared Sensor
Drive bays 1 x M.2 SSD slot
1 x 2.5" SATA
Rear I/O 1 x DC JACK for DC12-19V single power input
1x mini HDMI 1.4a
1x mini DisplayPort 1.2
1x RJ-45 GbE port
2x USB 3.0

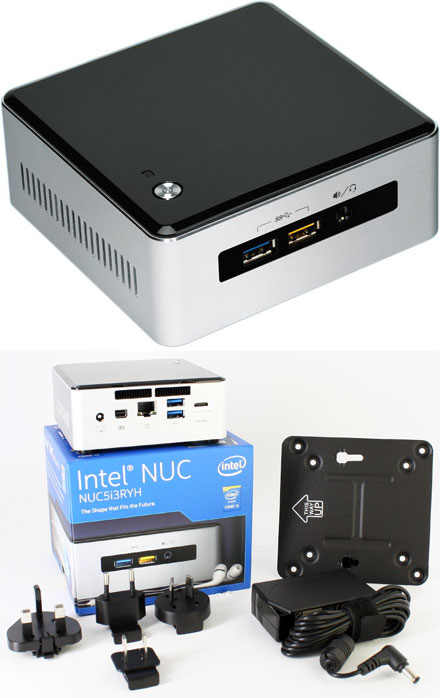

Scope of supply - Intel NUC5i3RYH barebone with VESA-mounting adapter
- AC/DC Adapter + multi-country plugs (power cord not included)
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
