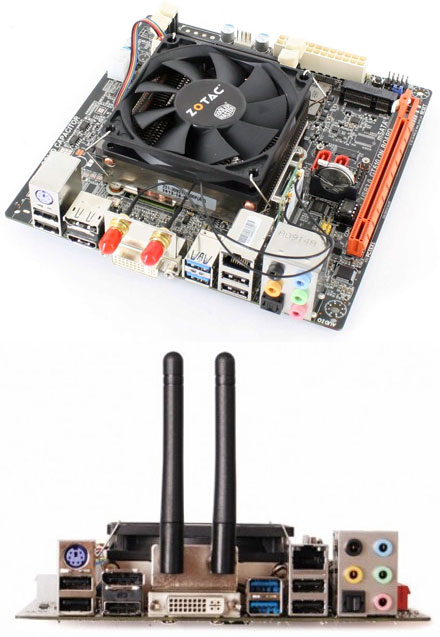

ZOTAC D2550-ITX WiFi Supreme (Intel Atom D2550, Nvidia GT610, WLAN) [D2550ITXS-A-E]

PRODUCT IS CURRENTLY NOT AVAILABLE !
ZOTAC D2550-ITX WiFi Supreme (Intel Atom D2550, Nvidia GT610, WLAN) [D2550ITXS-A-E]
3D 360° View
  • NVIDIA GeForce GT 610 !
  • Windows 8 compatible !
  • 802.11n WiFi !

Zotac has come up with something to overcome the current "Atom issue" (No Windows 8 suppport for the built-in graphics unit) : Zotac equips their new ZOTAC D2550-ITX WiFi Supreme Mainboard with a NVIDIA GeForce GT 610 graphics unit and this way even brings a big performance boost.

Experience a new generation of energy-efficient computing featuring a balance of CPU and GPU power with the ZOTAC D2550-ITX WiFi Supreme platform. Powered by the latest dual-core Intel® Atomâ„¢ D2550 processor paired with an NVIDIA® GeForce® GT 610 graphics processor, the ZOTAC D2550-ITX WiFi Supreme packs everything you need for a general-use desktop or home theatre PC into a compact mini-
[more]

Share

CPU Intel Atom D2550 2x1.86GHz
Graphics NVIDIA GeForce GT 610
Formfactor ITX (17x17cm)
RAM 2x DDR-III
Audio 5.1 Channel HD Audio
Base Intel ITX
USB 2 x USB 3.0, 6 x USB 2.0
Firewire --
IDE/SATA 2x SATA 3GB, 1x mSATA
LAN 1x 10/100/1000
Parallel --
Serial --
yes TV-Out
no PCI
yes Mini-PCI
no IDE
yes DVI
yes 800x480 Resolution
no Passive-Cooling
yes PCI-Express
no PCMCIA
yes SATA
no CPU changeable
no Compact Flash

Zotac has come up with something to overcome the current "Atom issue" (No Windows 8 suppport for the built-in graphics unit) : Zotac equips their new ZOTAC D2550-ITX WiFi Supreme Mainboard with a NVIDIA GeForce GT 610 graphics unit and this way even brings a big performance boost.

Experience a new generation of energy-efficient computing featuring a balance of CPU and GPU power with the ZOTAC D2550-ITX WiFi Supreme platform. Powered by the latest dual-core Intel® Atomâ„¢ D2550 processor paired with an NVIDIA® GeForce® GT 610 graphics processor, the ZOTAC D2550-ITX WiFi Supreme packs everything you need for a general-use desktop or home theatre PC into a compact mini-ITX form factor.

The NVIDIA® GeForce® GT 610 graphics processor enables the ZOTAC D2550-ITX WiFi Supreme to deliver superior video playback features including hardware video decode acceleration for Blu-ray 3D, streaming Internet video and native 1080p24 output. Onboard Gigabit Ethernet, 802.11n WiFi and Bluetooth 3.0 networking technologies on the ZOTAC D2550-ITX WiFi Supreme deliver outstanding network connectivity via wires or wireless to home network and peripherals.

Model D2550-ITX WiFi Supreme
Form Factor Mini-ITX
Chipset Intel NM10 Express
CPU Integrated Intel Atom D2550 1.86 GHz Dual-Core
Onboard Video NVIDIA GeForce GT 610 (512MB DDR3)
Onboard LAN 10/100/1000Mbps Ethernet Wireless: 802.11n (300 Mb/s)
Memory Size Up to 4GB
Memory Slots 2 x 204-pin DDR3 SO-DIMM
Memory Type DDR3 1066
SATA 2 x SATA 3 Gb/s
1 x mSATA
Video Ports 1 x DisplayPort, 1 x HDMI, 1 x DVI
DVI 1
HDMI 1
DisplayPort 1
USB Ports 2 x USB 3.0
6 x USB 2.0
PCI 1 x PCI Express x16 (single-lane)
1 x Mini-PCI Express (occupied by WiFi module)
Extra Features NVIDIA® PureVideo™ HD technology
NVIDIA® CUDA™ Ready
Bluetooth 3.0
Package Contents 1 x ZOTAC D2550-ITX WiFi Supreme Motherboard
2 x SATA cables
1 x DVI-to-VGA adapter
1 x I/O back plate
2 x WiFi antennas
Dimensions 6.7in x 6.7in - 170mm x 170mm
Weight 1.9900
Data sheet Download (PDF)
Data sheet Print view
Specifications [EN] Download (PDF)
