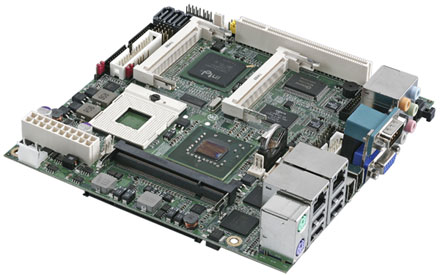

Commell LV-679D (for Core Duo/Core Single) (without I/O shield) [RECERTIFIED, 1 yr. warranty]

PRODUCT IS CURRENTLY NOT AVAILABLE !

Commell LV-679D (for Core Duo/Core Single) (without I/O shield) [<b>RECERTIFIED, 1 yr. warranty</b>]

498.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.
Compare

CPU	Intel Core Duo @ 800 FSB
Graphics	Intel GMA X3100
Formfactor	ITX (17x17cm)
RAM	2x DDR-II 533/667
Audio	Realtek ALC888 HD Audio
Base	Intel ITX

USB	8x USB 2.0
Firewire	2x
IDE/SATA	1x IDE, 3x SATA
LAN	2x 10/100/1000
Parallel	1x
Serial	1x

yes	TV-Out
yes	PCI
yes	Mini-PCI
yes	IDE
yes	DVI
yes	800x480 Resolution

no	Passive-Cooling
no	PCI-Express
no	PCMCIA
yes	SATA
yes	CPU changeable
no	Compact Flash

RAM :

Fully working, recertified mainboard.
1 year warranty

This board can be operated from a DC-power source (like car battery, input voltage range : 8-30V) or from a ATX power supply.

- CPU: Intel® Core™ 2 Duo processor ( Merom ) @ 800 MHz FSB
- Memory: 2 x 200-pin DDR2 533/667MHz up to 3.0 GB.
- Chipset: Intel® GME965 and ICH8M.
- VGA Interface: built-in Intel® extreme GMA X3100 Technology.
- LVDS interface: Onboard 24-bit Dual channel LVDS connector.
- DVI Interface: Onboard 26-pin DVI interface
- Enhanced IDE: One UltraATA33 IDE interface supports up to 2 ATAPI Devices.
- Serial ATA: 3 x Serial ATA interface with 300 MB/s transfer rate.
- LAN Interface: 2 x Intel® 82573L Gigabit Ethernet .
- Audio: Realtek ALC888 HD Audio.
- Solid State Disk: IDE1 supports 44-pin DiskOnModule with +5V power supply.
- IEEE 1394: 2 x IEEE1394 port.
- GPIO interface: Onobard 8-bit Digital I/O interface.
- Extended interface: 2 x Mini-PCI socket and 1 x PCI slot.
- Rear I/O ports: PS/2 Keyboard/Mouse, VGA, LAN, USB 2.0, Audio, SPDIF, IEEE 1394 COM.

Scope of supply :
- LV679D2 mainboard (without I/O shield)
- Slim CPU Alu cooler
- IDE-cable (40 to 44 pin)
- Floppy-cable (26 pin)
- COM/LPT-port-cable-kit
- 2x SATA cable
- S-Video to YPbPr Adapter
- S-Video to TV-Out Adapter
- DVI Bracket
- USB Bracket
- DC Power Socket + ATX Power connector adapter

NOTE : Can not be used with M2-ATX and M2-ATX-HV and M3-ATX ! (But eg. with M4-ATX, PicoPSU-90, PicoPSU-120, PicoPSU-80-WI,PicoPSU-120-WI)

Form Factor	Mini-ITX Motherboard (170 x 170 mm)
CPU	Intel® Core™ 2 Duo (Merom) processor @ 800 MHz FSB
Memory	2 x DDR2 533/667 MHz SODIMM up to 3.0 GB
Chipset	Intel® GME965 & ICH8M
Real Time Clock	Chipset integrated RTC with onboard lithium battery
Watchdog Timer	Generates a system reset internal timer for 1sec/min ~ 255 sec/min
Power Management	ACPI 1.0 compliant, supports power saving mode
PCI Enhanced IDE	1 x Ultra ATA/33 IDE channel up to 2 ATAPI devices
VGA Interface	Intel® GME965 integrated GMA (Graphic Media Accelerator) X3100 Technology
Video Memory	Up to 384 MB shared with system memory
Serial ATA Interface	3 x Serial ATA II Interface with 300 MB/s transfer rate.
Audio Interface	Realtek ALC888 HD Audio
LAN Interface	2 x Intel® 82573L Gigabit Ethernet
Solid State Disk	IDE1 supports 44-pin DiskOnModule +5V power supply
GPIO Interface	Onboard programmable 8-bit digital I/O interface
Extend Interface	1 x PCI slot & 2 x Min-PCI socket
External I/O Port	2 x RJ45 LAN ports, 1 x DB15 VGA port, 1 x PS/2 Keyboard / Mouse ports, 2 x IEEE 1394 ports, 4 x USB 2.0 ports, Audio, SPDIF, 1 x COM
Internal I/O Port	1 x RS232/422/485, 1 x silm FDD, 1 x IrDA , 1 x LPT, 4 x USB 2.0, 1 x 8-bit GPIO, 1 x Audio, 1 x CDIN LVDS and LCD inverter connector, 1x DVI, 1 x TV-out
Power Requirement	Standard 20-pin ATX power supply or 9V ~ 24V full range DC input (8 ~ 30V is operative)
Board Dimension	170mm x 170 mm (L x W)

Data sheet	Download (PDF)
Data sheet	Print view
Manual [EN]	Download (PDF)
Review [DE]	Download

Please login for creating product ratings.

Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: Average rating, based on 5 ratings

from hks gmbh am 27.02.2009 |

Wir sind sehr zufrieden mit der unkomplzierten Auftragsabwicklung und der schnellen Lieferung.
Auch der anschliessende technische Support hat uns gut weitergeholfen. Vielen Dank!

from fmorbitzer am 08.07.2008 |

Unter XP keinerlei Probleme, super schnell auch beim Hoch/Runterfahren. Genügend Leistungsreserven für nahezu alle Aufgaben, die man sich vorstellen kann. Ich bin begeistert!

from wanyCartft am 15.04.2008 |

| See all my comments

This new board work fine.
We have tested the board with the following configuration:
2x 1Go of DDR2 533
The wireless LAN mini PCI with antenna
Hard disk PATA 100 of 80Go
CPU Core2 Duo T7100 -1.8GHz
It is a very powerful configuration. We are completely satisfied. Very interesting for the single power input 8-24V.
FYI : the motherboard is not compatible with some old CRT screens, with two of our, the screen was blank.

from YannickDM am 02.04.2008 |

| See all my comments

This board is the best! It is very expandable. With the 2 mini-PCI slot you can get all the stuff you want! I've install a T7500, no problems with that! Even the cooler is good enough!Recommended!

from digicom am 30.12.2007 |

| See all my comments

Schda veramente performante! completa di tutto con discrete possibilità di espansione ! supporta tutti i nuovi processori intel duo 2 con bus a 800 mhz! arriva completa di tutti i cavi necessari all'installazione l'unica pecca è il costo non certo economico, ma ne vale la pena specialmente se si cerca un sistema potente!
