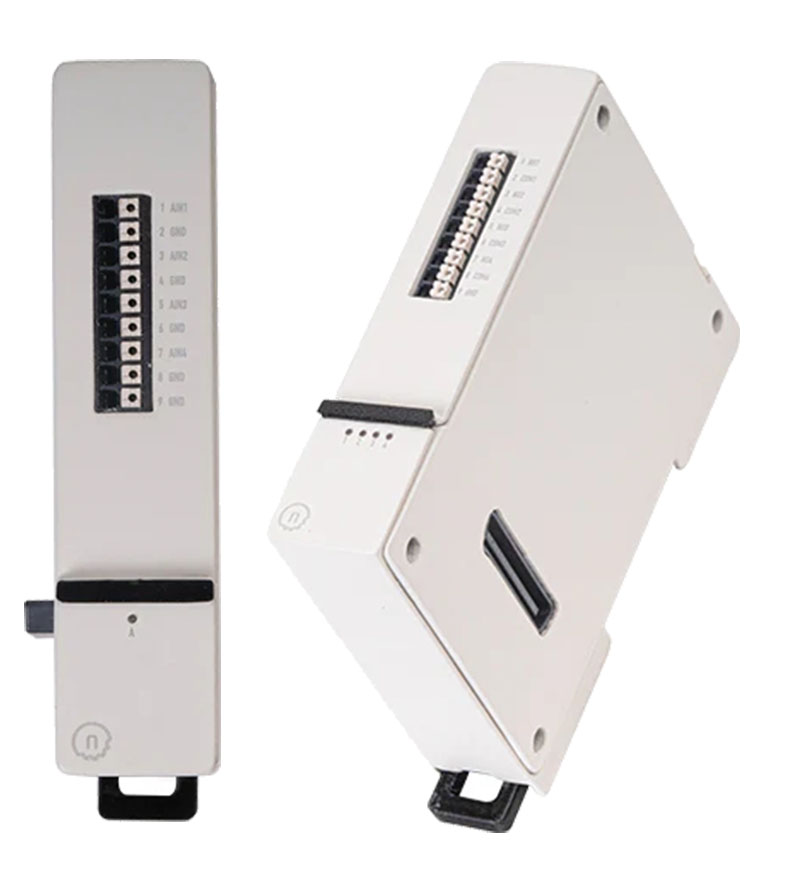

NORVI X-RTD4 (Extension Modul f. Norvi X, 4-channel RTD)

NORVI X-RTD4 (Extension Modul f. Norvi X, 4-channel RTD)
  • Norvi X Series !
  • ADC !
  • 15-bit RTD-to-Digital converter !
  • Extension !

  • High-Precision ADC Integrated 15-bit RTD-to-Digital converter
  • 4-Channel Input Sequential monitoring
  • Flexible Wiring
  • Automatic Fault Detection
  • 4-Way DIP Switch and RTD type selection DIP
  • Status LED indicators for each input channel
  • Plug-and-play connection to NORVI X CPU module via expansion bus
  • DIN-rail Mounting
[more]
Share

59.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart

  • High-Precision ADC Integrated 15-bit RTD-to-Digital converter
  • 4-Channel Input Sequential monitoring
  • Flexible Wiring
  • Automatic Fault Detection
  • 4-Way DIP Switch and RTD type selection DIP
  • Status LED indicators for each input channel
  • Plug-and-play connection to NORVI X CPU module via expansion bus
  • DIN-rail Mounting


The NORVI X-RTD4 is a high-precision 4-channel RTD expansion module for the NORVI X modular controller platform. It utilizes the 15-bit ADC to provide laboratory-grade temperature digitization for Platinum RTDs.

The module features an integrated analog multiplexer and an onboard STM32 MCU, allowing for sequential monitoring of four independent sensors while offloading processing from the main controller.


Range of product NORVI X
Product type /
Model		 Expansion Module f. NORVI X Series
NORVI X-RTD4
Certifications EN 61131-2:2007
EN 61010-1:2010+A1:2019
EN IEC 61010-2-201:2018
2014/30/EU- Electromagnetic Compatibility (EMC)
Annex III, Part B, Module C
Dimmensions 81 x 104 x 23 mm
Mounting DIN RAIL
Terminal Type Push-in terminal
Envirement IP20
Operating altitude: 0-2000 meters
Operating Temperature: -10 ... - +85°C
Shock resistance: 15 gn for 11ms
Resistance to electrostatic discharge: 4kV on contact / 8kV on air
Supply Voltage (V) 24V / 80mA
I/O Specification
Input Channels4 Independent RTD Channels
Resolution15-bit
Debug InterfaceMicro-USB (For Debugging)
CommunicationSPI / I2C via Expansion Bus
MicrocontrollerSTM32 Series (Internal Bridge)
Power Supply24V DC (via Expansion Bus)
Internal InterfaceHigh-Speed SPI (MCU to ADC Output Stage)
Data sheet Download (PDF)
Data sheet Print view
