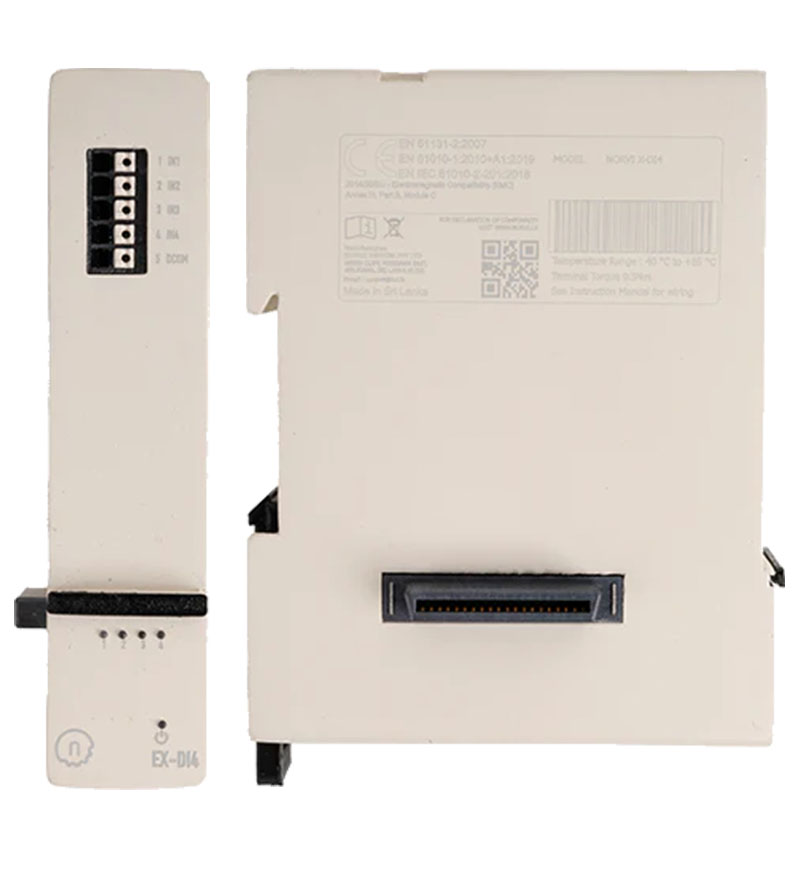

NORVI X-DI4 (Extension Modul f. Norvi X, 4 Digital Inputs)

NORVI X-DI4 (Extension Modul f. Norvi X, 4 Digital Inputs)
  • Norvi X !
  • 4x Digital Inputs !
  • Extension !

  • 4 × Optically Isolated 24 V Digital Inputs
  • Direct GPIO Link to Host CPU (for high-speed signal acquisition)
  • Supports fast inputs such as PWM, pulse trains & encoders
  • One common terminal for all four inputs
  • DIN-rail mountable industrial enclosure
  • Status indicators for each input
[more]
Share

39.00 EUR
incl. 19% VAT, plus shipping
In Stock (2 pcs)
Add to cart

  • 4 × Optically Isolated 24 V Digital Inputs
  • Direct GPIO Link to Host CPU (for high-speed signal acquisition)
  • Supports fast inputs such as PWM, pulse trains & encoders
  • One common terminal for all four inputs
  • DIN-rail mountable industrial enclosure
  • Status indicators for each input


NThe NORVI X-DI4 is an industrial-grade digital input expansion module designed to seamlessly integrate with the NORVI X Modular Controller. It provides four optically isolated and protected 24 V DC digital inputs, enabling reliable interfacing with sensors, switches, and other field devices used in industrial automation and monitoring systems.

The DI4 variant directly connects its inputs to the host CPU’s GPIO, offering high-speed signal capture suitable for PWM, pulse-train, and encoder inputs. Its design ensures noise immunity, galvanic isolation, and compatibility with both sourcing (PNP) and sinking (NPN) sensor types.




Range of product NORVI X
Product type /
Model		 Expansion Module f. NORVI X Series
NORVI X-DI4
Certifications EN 61131-2:2007
EN 61010-1:2010+A1:2019
EN IEC 61010-2-201:2018
2014/30/EU- Electromagnetic Compatibility (EMC)
Annex III, Part B, Module C
Dimmensions 81 x 104 x 23 mm
Mounting DIN RAIL
Terminal Type Push-in terminal
Envirement IP20
Operating altitude: 0-2000 meters
Operating Temperature: -10 ... - +85°C
Shock resistance: 15 gn for 11ms
Resistance to electrostatic discharge: 4kV on contact / 8kV on air
Supply Voltage (V) 24V / 80mA
I/O Specification
Number of Inputs 4 Digital INputs
Input Type Isolated 24V DC
Input Voltage Range 0-30 V DC
Logic Low (OFF) < 5 V DC
Logic High (ON) > 15 V DC
Input Impedance ~ 7 mA @ 24V
Protection Over-voltage, Reverse Polarity, ESD Protected
Opto-coupler isolation per channel
Status Indicators 4x LED Input indicators
Communication Bus / Type Internal Expansion Bus
Push-in Terminal Block
