CFI A-7879 V2 Mini-ITX enclosure (4x 3.5" NAS, 1x 2.5", Hot-Plug, 1x PCI, 250W)

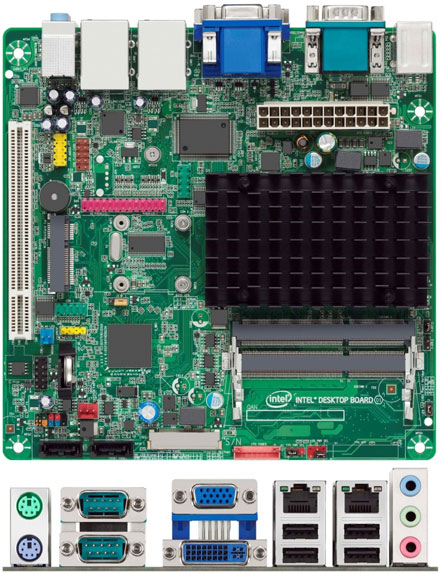

Intel D2500CC-E (Intel Atom 2x 1.86Ghz CPU, 2x LAN, 4x RS232) [FANLESS] (Remnant)
PRODUCT IS CURRENTLY NOT AVAILABLE !
Remnant with I/O shield, 1x SATA cable, manual. 2 years warranty.
- Dual-core Atom
- DVI-I for full dual-independent display support
- 4 serial ports & headers for multiple peripherals
- Boards are suitable for other devices; ATM, Kiosk, POS, etc.
| CPU | Intel Atom D2500 2x1.86GHz |
| Graphics | Intel GMA |
| Formfactor | ITX (17x17cm) |
| RAM | 2x SO-DDR-III |
| Audio | 6+2 Channel HD Audio |
| Base | Intel ITX |
| USB | 7x USB 2.0 |
| Firewire | -- |
| IDE/SATA | 2x SATA |
| LAN | 2x 10/100/1000 |
| Parallel | -- |
| Serial | 4x |
| no | TV-Out |
| yes | PCI |
| yes | Mini-PCI |
| no | IDE |
| yes | DVI |
| yes | 800x480 Resolution |
| yes | Passive-Cooling |
| no | PCI-Express |
| no | PCMCIA |
| yes | SATA |
| no | CPU changeable |
| no | Compact Flash |
Please login for creating product ratings.
from vdelft am 06.01.2014
|
| See all my comments
from kallenbach am 23.05.2013
|
1
2
3
Forward
Your rating:
Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating.
If you want you also can leave a comment.
Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And
you can benefit from reports other customers are giving.
In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters)
on your account. The credit will be substracted automatically on your next order !
We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders).
"Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.
|
Customer ratings:
Average rating, based on 15 ratings |
from vdelft am 06.01.2014
|
| See all my comments
Good MB. In few hours I've install OpenBSD 5.4 (flashrd on usb) with all firewall features. Via the bios, we can ask the MB to restart after power cut. Very well appreciated. No heat problems
from kallenbach am 23.05.2013
|
Bekanntes Atom-Board von Intel. Loben muss man die Abwicklung durch CarTFT. Super schnell! Und das beim niedrigsten Preis, den Dr. Google findet. Klasse!
Update from :2013-11-27 08:12
Wie immer alles super OK. Danke
Compatible enclosures
M350 Mini-ITX enclosure
MHero-L-B Mini-ITX enclosure (1x PCI, Slimline ODD, 84W PSU)
MHero-L-R Mini-ITX enclosure (1x PCI, Slimline ODD, 84W PSU)
MHero-S-R Mini-ITX enclosure (with 84W PSU)
Good.
Update from :2014-09-16 04:58
Good and fits to purpose
