Intel DH67CF (für i3, i5, i7 [Sockel LGA1155], Sandy Bridge) [Remnant]

PRODUCT IS CURRENTLY NOT AVAILABLE !

3D 360° View

i3, i5, i7 High-End !
HDMI !
DVI-I !
Sandy Bridge !

Remnant with I/O shield, 2x SATA cable. 2 years warranty.

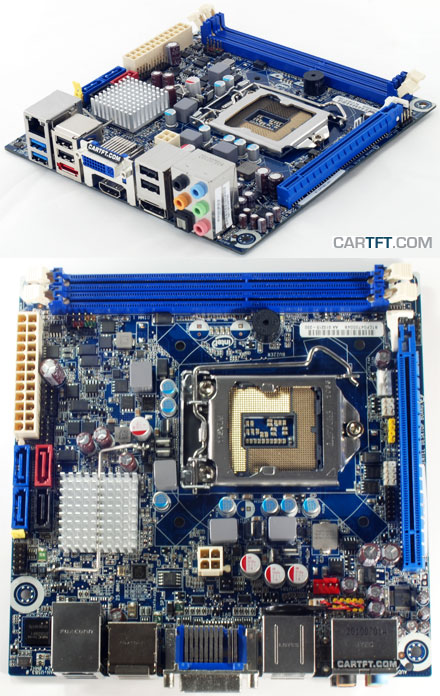

The Intel DH67CF is the first Mini-ITX mainboard which supports the new Sandy Bridge CPUs which have graphics included in one core.

129.95 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.
Compare

CPU	Intel Core i3/i5/i7 (LGA1155)
Graphics	Intel HD100/HD200
Formfactor	ITX (17x17cm)
RAM	2 x DDR3 (1066/1333)
Audio	10-channel Intel High Definition Audio4
Base	Intel ITX

USB	10x USB2.0
Firewire	--
IDE/SATA	5x SATA, 1x eSATA
LAN	1x 10/100/1000
Parallel	--
Serial	--

yes	TV-Out
no	PCI
no	Mini-PCI
no	IDE
yes	DVI
yes	800x480 Resolution

no	Passive-Cooling
yes	PCI-Express
no	PCMCIA
yes	SATA
yes	CPU changeable
no	Compact Flash

RAM :

Name	DH67CF
Form Factor	Mini-ITX Mainboard
CPU	Core I7 Core I5 Core I3 Socket LGA1155
Chipset	Intel H67 Express Chipsatz (B3)
Graphics	Intel HD100/HD200
Memory	2 x DDR3 DIMM, 1066/1333 Mhz, bis zu 16GB
Power	24 Pin ATX
Connectors (rear)	4 x USB 2.0 2 x USB 3.0 1 x Audio 1 x SPDIF 1 x 10/100/1000 Mb/s Ethernet 1 x eSATA 1 x HDMI 1 x DVI-I 1 x Display Port
SATA	5x SATA, 1x eSATA
Audio	10-channel Intel High Definition Audio4, Dolby Home Theater
Connectors (internal)	6 x USB 3 x SATA (3GB/s) 2 x SATA (6GB/s) 1 x eSATA 1 x PCIexpress x16
Included	- DH67CF Mainboard - I/O ATX rear plate - 2x SATA cable - Quickstart-Guide - Drivers CD

Data sheet	Download (PDF)
Data sheet	Print view
Review [DE]	Download (PDF)
Review [EN]	Download (PDF)

Please login for creating product ratings.

Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: Average rating, based on 3 ratings

from arittas am 22.07.2013 |

| See all my comments

from Spiderman am 11.04.2011 |

Ich wollte mit diesem Motherboard vor allem einen Stromsparenden und dennoch einigermaßen leistungsfähigen Server bauen.
Zusammen mit einem i3-2100T, 8GB Ram und einer SSD komme ich auf einen Idle-Verbrauch von unter 17W. Damit bin ich äußerst zufrieden.
Besonders möchte ich an dieser Stelle den Support von CarTFT lobend erwähnen.
Irgendwie muss bei der Montage der Bios-Jumper unbemerkt herausgegangen sein.
Nachdem scheinbar alle anderen Komponenten funktionierten hat die Hotline mir dann sogar angeboten das komplett bestückte Board einzuschicken und zu testen.
Glücklicherweise konnte mit Hilfe der Unterstützung von CarTFT der Fehler dann doch relativ schnell gefunden werden.

from cyberpunx am 07.03.2011 |

Recently built a portable quad core workstation mainly for cad dcc work. The product lets you create the perfect mini-pc. it also arrived really fast. CarTFT, i can recommend to anyone and also impressive car hardware wise.
